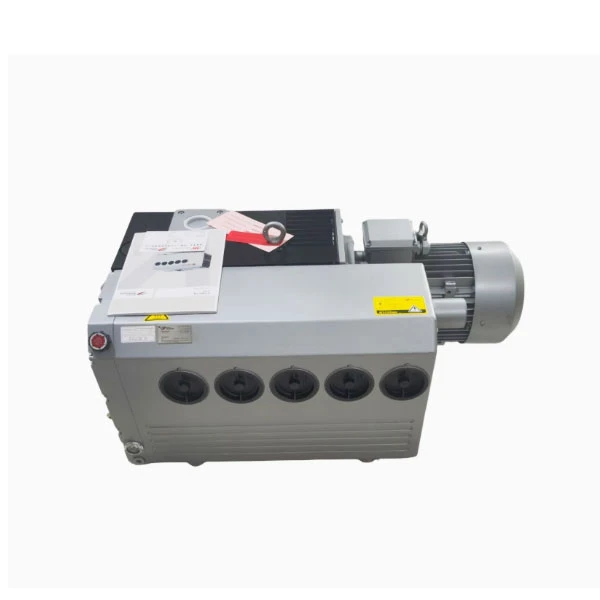

Peb muab lub tshuab nqus tsev twj rau Rietschle VC50/VC75/VC100/VC150/VC202/VC303
Lub siab nce los ntawm kev txo qhov ntim yog lub hauv paus ntsiab lus ntawm kev ua haujlwm ntawm lub tshuab ua haujlwm. Qhov kev tsim zoo li qub no muaj kev pabcuam zoo heev, lub tshuab nqus tsev lossis kev sib txuas ntawm ob qho tib si. Nyob ntawm qhov loj thiab tsim -ieoil lubricated los yog qhuav khiav -vacuum mus txog 0.1mbar abs nrog lub peev xwm ntawm 50 mus rau 360m degree hr tuaj yeem raug bereached.
Nyob rau hauv lub cylindrical vaj tse (1) ib tug rotor (2) yog positioned eccentrically so uas nws yog nyob rau sab saum toj yuav luag kov lub tog raj kheej. Rotor blades (4) muab tso rau hauv ntau lub rotor slots (3). Thaum lub rotor pib, vim yog lub zog centrifugal, cov hniav raug muab pov tseg thiab swb tawm tsam sab hauv ntawm lub tog raj kheej. Nyob rau hauv txoj kev no, lub xovtooj ntawm tes (5) yog tsim los ntawm ob lub ntsej muag nrog lub ntim uas hloov tsis tu ncua thaum lub sijhawm tig. Cua nkag los ntawm qhov chaw nres nkoj inlet mus rau hauv ib lub celuntil kom lub rear hniav mus txog rau
inlet chaw nres nkoj (7) . Lub sijhawm no lub xov tooj ntawm tes (5) tau ua tiav nws qhov siab tshaj plaws airvolume. Raws li lub xovtooj ntawm tes txav deb ntawm qhov chaw nres nkoj nws qhov ntim tau me dua thiab me dua, cov huab cua yog li compressed thiab lub siab nce. Qhov no txuas ntxiv mus txog rau thaum lub siab hauv lub xov tooj ntawm tes (8) dhau qhov uas nyob rau hauv lub siab chamber (9) thiab huab cua ces tawm ntawm qhov chaw nres nkoj qhov hluav taws xob (10). Qee cov qauv yog haum nrog cov pa tawm (11) uas nres qhov rov qab ntawm cov pa tawm no yog tias qhov siab tshaj plaws tau mus txog.
Hauv lub tshuab nqus tsev twj tso kua mis cov txheej txheem zoo ib yam, tab sis lub xov tooj ntawm tes (8) txo qis, thiab lub chamber (9) yog atmosphericpressure.
| Pump Model No. | VC 50 | wb VC75 | VC 100 | HWV 150 | ||
| Nominal muaj peev xwm | m³/h | 50hz ib | 50 | 70 | 100 | 150 |
| 60hz ib | 60 | 84 | 120 | 150 | ||
| Qhov kawg ib nrab siab | mbar (abs) | 0.1 | ||||
| Lub cev muaj zog version | 3~ | 50hz ib | 200-255/346-440v±5% | 230/400V±10% | ||
| 60hz ib | 200-277/346-480v±5% | 380/660V | ||||
| Kev ntsuas lub cev muaj zog | KW | 50hz ib | 1.25 | 1.85 | 3 | 4 |
| 60hz ib | 1.5 | 2.2 | 3.6 | 5.5 | ||
| Tam sim no kos | A | 50hz ib | 6.9/4.0 | 8.7/5.0 | 11.4/6.6 | 15.6/9.0 |
| 60hz ib | 7.6/4.4 | 9.4/5.4 | 13.7/7.9 | 11.5/6.6 | ||
| Ceev | min -1 | 50hz ib | 1450 | |||
| 60hz ib | 1740 | |||||
| Nruab nrab suab nrov | dB(A) → DIN45635 | 50hz ib | 64 | 64 | 66 | 68 |
| 60hz ib | 67 | 68 | 69 | 71 | ||
| Qhov hnyav tshaj plaws | KG | 50hz ib | 57 | 59 | 88 | 89 |
| 60hz ib | 57 | 59 | 90 | 98 | ||
| Roj muaj peev xwm | I | 3 | 3 | 3 | 3.5 | |
| Pump Model No. | SIB 202 | SIB 303 | ||||
| Suction Capacity | m³/h | 50 HZ | 200 | 300 | ||
| 60 tzs | 240 | 360 | ||||
| Lub tshuab nqus tsev vacuum | mbar (abs) | 0.5 | ||||
| Rated Voltage | 3~ | 50 HZ | 400/690V±10% | 400/690V±10% | ||
| 60 tzs | 380/660V | 380/660V | ||||
| Kev ntsuas lub cev muaj zog | KW (3 ~) | 50 HZ | 5.5 | 7.5 | ||
| 60 tzs | 7.5 | 9 | ||||
| Tam sim no Comsumption | A(3~) | 50 HZ | 13/7.5 | 15/8.7 | ||
| 60 tzs | 20/11.7 | 19/11 | ||||
| ceev | min -1 | 50 HZ | 1450 | |||
| 60 tzs | 1740 | |||||
| Nruab nrab suab nrov | dB(A) → DIN ISO3744 | 50 HZ | 69 | 70 | ||
| 60 tzs | 73 | 74 | ||||
| Qhov hnyav tshaj plaws | KG | 50 HZ | 174 | 187 | ||
| 60 tzs | 191 | 192 | ||||
| Roj muaj peev xwm | I | 8 | 8 | |||
